The LBS-100 system that is not as compact as the LBS-300s but has larger aperture, and has versions for longer wavelengths. The system contains the mounting frame, 1 wedge beam splitter and several attenuators. The exit end of the LBS-100 is standard C-mount thread so all our cameras can be mounted to the frame.
Includes mounting frame, 1 wedge beam splitter and attenuators
Standard C-mount thread
6.5 degree wedge angle
Drawing

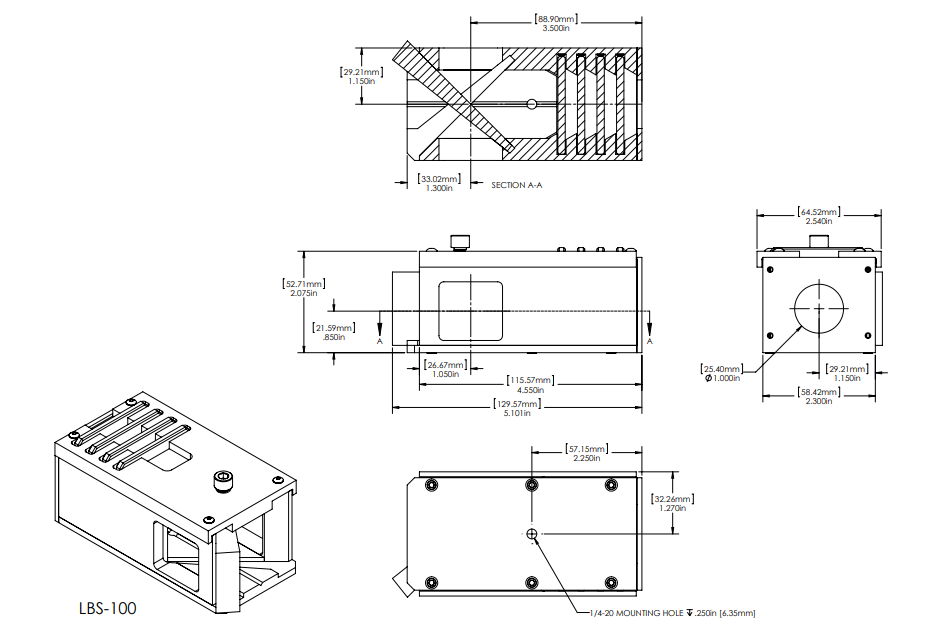

LBS-100 Drawing
Specifications
| Models |
 LBS-100SP90061 |
 LBS-100 YAGSP90057 |
 LBS-100IR 0.5SP90058 |
 LBS-100IR 5.0SP90059 |
| Spectral Range | 400-700 nm | 1064 nm | 10.6 μm | 10.6 μm |
| Material |
Wedge: UVFS Filter: Bulk ND |
Wedge: UVFS Filter: Bulk ND |
Wedge: ZnSe Filter: CaF2 |
Wedge: ZnSe Filter: CaF2 |
| Wedge Reflection | Uncoated, 4% | AR coated, ≤1% | AR coated, ≤0.5% | AR coated, ≤5% |
| Nominal ND | 0.3, 0.7, 1.0, 2.0, 3.0, 4.0 ND at 632 nm | 0.3, 0.7, 1.0, 2.0, 3.0, 4.0 ND at 632 nm | ||
| Transmission |
30% for 3 mm flat 60% for 1 mm flat |
30% for 3 mm flat 60% for 1 mm flat |
||
| Damage Threshold |
Wedge: 100 W/cm2 CW, 6 kJ/cm2 1 ms pulse Filter: 50 W/cm2 |
Wedge: 500 W/cm2 CW, 30 kJ/cm2 1 ms Pulse Filter: 50 W/cm2 |
Wedge: 1000 W CW, 105 J/cm2 Filter: 50 W/cm2 |
Wedge: 100 W CW, 104 J/cm2 Filter: 50 W/cm2 |
| Clear Aperture | ?19 mm | ?19 mm | ?19 mm | ?19 mm |
| Interface | C-mount | C-mount | C-mount | C-mount |
